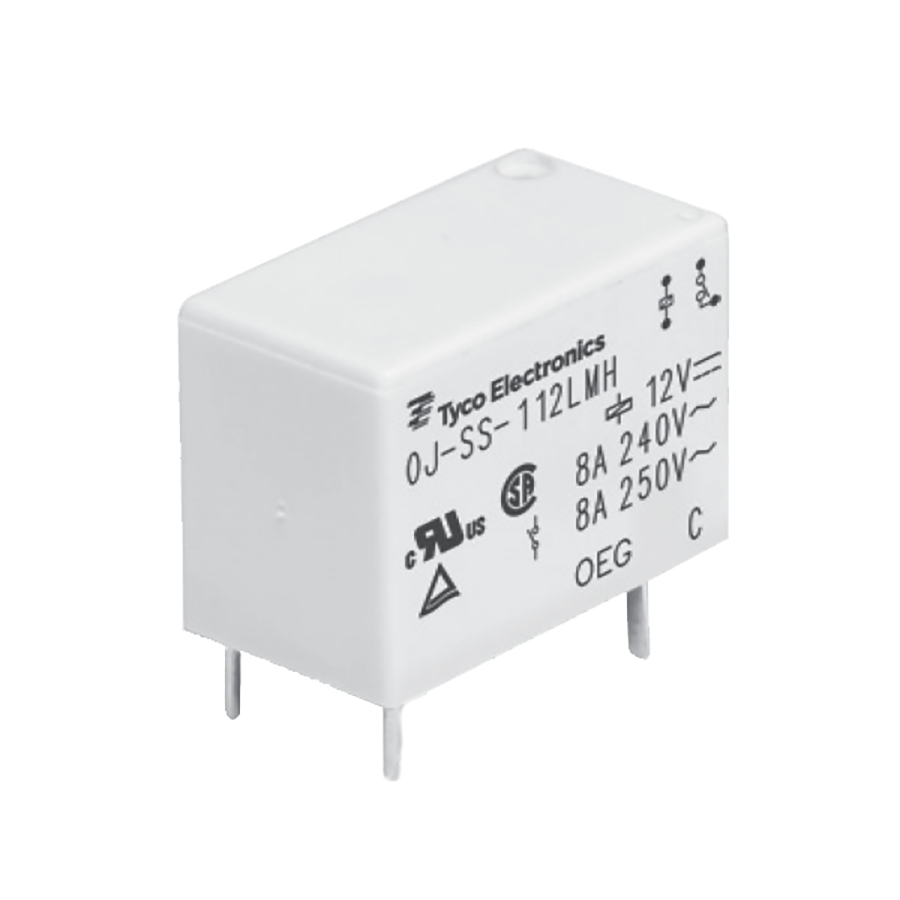

1461247-3
Manufacturer:
TE Connectivity
Mfr.Part #:
1461247-3
Datasheet:
Description:
Signal Relays Through Hole Non-Latching Coil Voltage (DC):24 V
| Parameter | Value |
|---|---|
| Length | 18.2 mm |
| Width | 10.2 mm |
| Termination | PCB |
| Height | 14.7 mm |
| Packaging | Bulk |
| Depth | 10.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 9 g |
| Contact Material(Contact Finish) | Silver Cadmium Oxide (AgCdO) |
| Current Rating | 8 A |
| Max Current Rating | 8 A |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Number of Contacts | 1 |
| ELV | Non-Compliant |
| Ambient Temperature Range High | 105 °C |
| Throw Configuration | SPST |
| Coil Voltage (DC) | 24 V |
| Coil Type | Non-Latching |
| Coil Resistance | 2.88 kΩ |
| Contact Current Rating | 8 A |
| power consumption | 200 mW |
| Switching Voltage | 277 VAC, 30 VDC |
| Coil Power | 200 mW |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Contact Voltage Rating (DC) | 30 V |
| Contact Form | SPST (1 Form A) |
Stock: 1085
Distributors
pcbx
pcbxUnit Price$1.08918
Ext.Price$1.08918
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.08918 | $1.08918 |
| 10 | $0.97633 | $9.76330 |
| 25 | $0.93273 | $23.31825 |
| 50 | $0.90110 | $45.05500 |
| 100 | $0.86348 | $86.34800 |
| 300 | $0.81390 | $244.17000 |
| 500 | $0.79509 | $397.54500 |
| 1000 | $0.76944 | $769.44000 |
| 3000 | $0.73758 | $2212.74000 |
| 5000 | $0.70703 | $3535.15000 |
